Unlocking 5 Dry Well Design Variations for Backyard Drainage Solutions

BY DANIELA GIRALDO – APRIL 20, 2024

dry-well

In the realm of landscaping and backyard design, ensuring proper drainage is paramount for maintaining the health and aesthetics of your outdoor space. One effective solution gaining popularity is the implementation of dry wells. These ingenious structures efficiently manage excess water, preventing issues like erosion, waterlogging, and flooding. In this comprehensive guide, we’ll delve into various dry well design variations tailored to suit diverse backyard needs, providing insights into their functionality, installation, and benefits.

Understanding Dry Wells:

Dry wells, also known as soakaway pits or French drains, are subsurface structures designed to collect, retain, and gradually disperse excess water into the surrounding soil. Unlike traditional stormwater management systems that channel water away from the property, dry wells facilitate infiltration, allowing water to percolate naturally into the ground. This eco-friendly approach not only mitigates runoff but also helps replenish groundwater resources.

Design Variations:

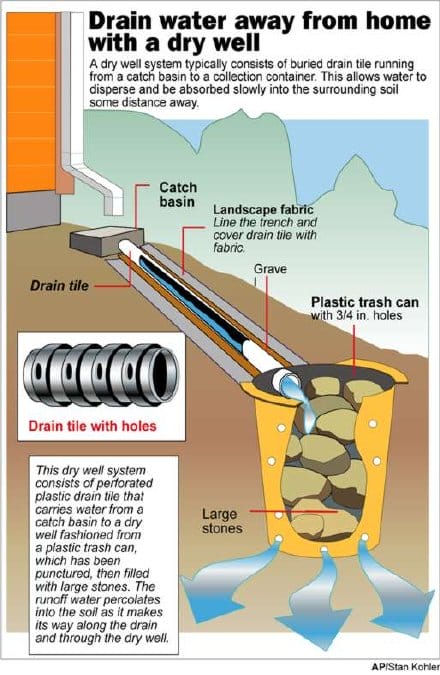

1. Traditional Gravel-Filled Dry Well:

gravel-fill-dry-well
  • The classic dry well design comprises a dug pit filled with coarse gravel or aggregate material.
  • Perforated pipes are often installed within the pit to facilitate water collection and distribution.
  • This design effectively captures surface water and redirects it underground, preventing pooling and saturation.

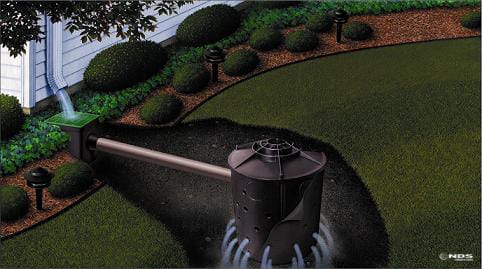

2. Modular Plastic Dry Wells:

modular-plastic-dry-well
https://marteksupply.ca/product/flo-well-dry-well/
  • Modular dry wells consist of interconnected plastic chambers that form a void space for water storage.
  • These lightweight and durable units are easy to install and customize according to specific drainage requirements.
  • The modular design allows for efficient water infiltration while minimizing excavation and labor costs.

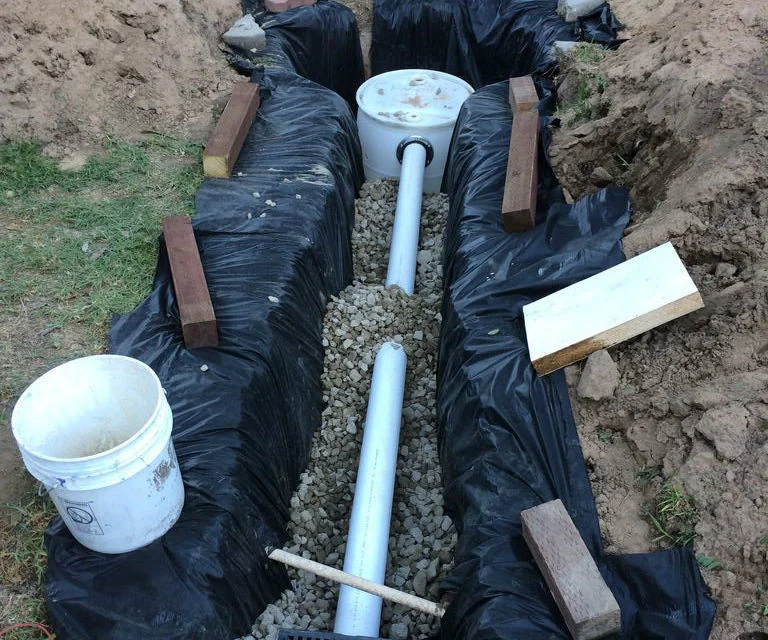

3. Fabric-Wrapped Dry Wells:

fabric-wrapped-dry-well
https://www.instructables.com/French-Drain-with-Dry-Well/
  • Fabric-wrapped dry wells feature a geotextile fabric lining that encases the aggregate material.
  • The fabric prevents soil intrusion and clogging, ensuring long-term functionality and minimal maintenance.
  • This design is particularly suitable for areas with fine soil particles prone to infiltration issues.

4. Rain Garden Integration:

rainwater-integration-dry-well
https://www.elkgrovecity.org/sites/default/files/city-files/Departments/Public%20Works/Drainage/Dry%20Wells/Fact%20Sheet%20Dry%20Well%20Uses%20Regulations.pdf
  • Integrating dry wells with rain gardens creates a synergistic approach to water management.
  • Rain gardens serve as aesthetically pleasing landscaping features that enhance biodiversity while providing natural filtration.
  • By directing overflow from dry wells into rain gardens, homeowners can further reduce stormwater runoff and promote sustainable landscaping practices.

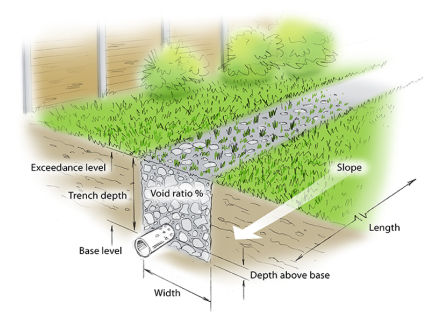

5. Infiltration Trenches:

infiltration-trench-dry-well
https://help.autodesk.com/view/INFDS/ENU/?guid=GUID-68B08682-BBF9-4FBC-8A42-CEBAE2EB0AD3
  • Infiltration trenches function similarly to dry wells but cover a larger surface area.
  • These elongated excavations allow for increased water storage and infiltration capacity, making them ideal for expansive backyard spaces.
  • Infiltration trenches can be complemented with vegetation or mulch to enhance absorption and visual appeal.

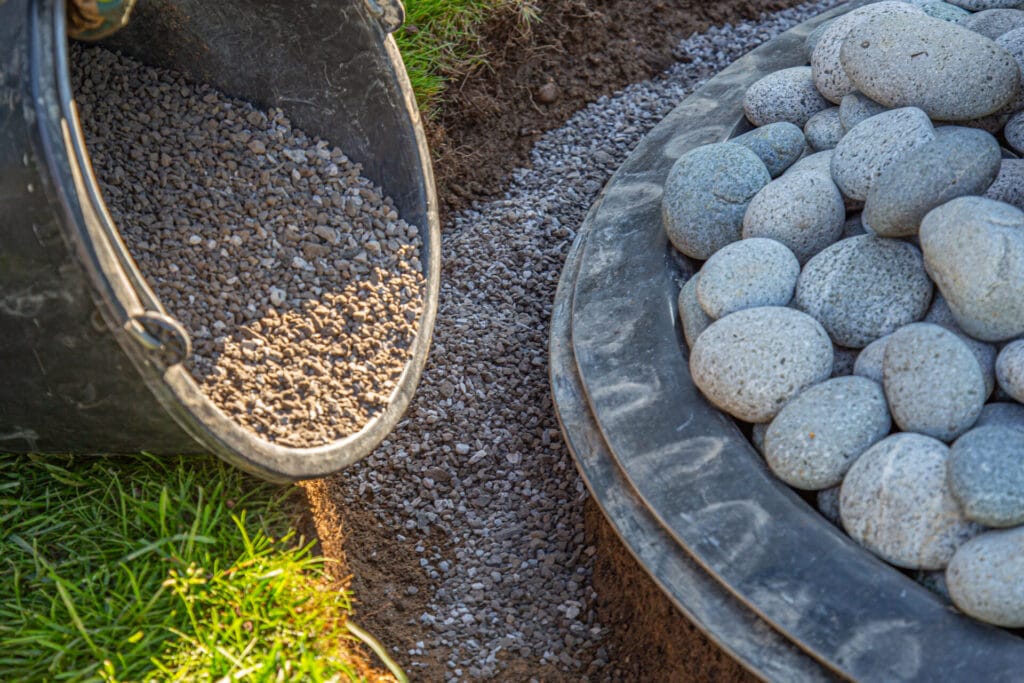

Installation and Maintenance Tips:

dry-well-installation
https://www.richardcleaver.com/2007/04/03/dry-well/
  • Before installing a dry well, conduct a thorough site assessment to determine soil composition, water flow patterns, and optimal placement.
  • Excavate the designated area to the appropriate depth and dimensions, ensuring adequate space for water storage and infiltration.
  • Install perforated pipes, if necessary, to facilitate water collection and prevent clogging.
  • Backfill the pit with gravel or aggregate material, compacting each layer to ensure stability and proper drainage.
  • Regular maintenance tasks include inspecting for debris accumulation, sediment buildup, and vegetation intrusion, as well as clearing any blockages to maintain optimal functionality.

Benefits of Dry Wells:

  • Prevents soil erosion and waterlogging
  • Minimizes surface runoff and flooding
  • Improves groundwater recharge
  • Enhances landscaping aesthetics
  • Eco-friendly and sustainable water management solution
Hire A Professional Here

Incorporating dry wells into backyard drainage systems offers a practical and environmentally conscious approach to managing excess water. By exploring various design variations and installation techniques, homeowners can customize solutions that effectively address their specific drainage needs while enhancing the overall appeal of their outdoor spaces. Whether opting for traditional gravel-filled pits or innovative modular systems, investing in dry well technology promises long-term benefits for both property owners and the environment alike.
